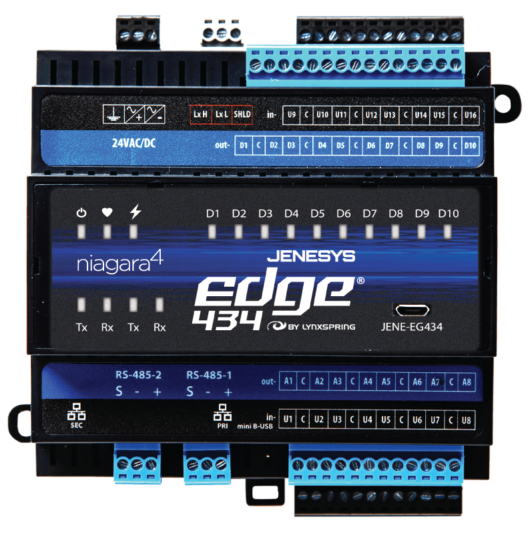

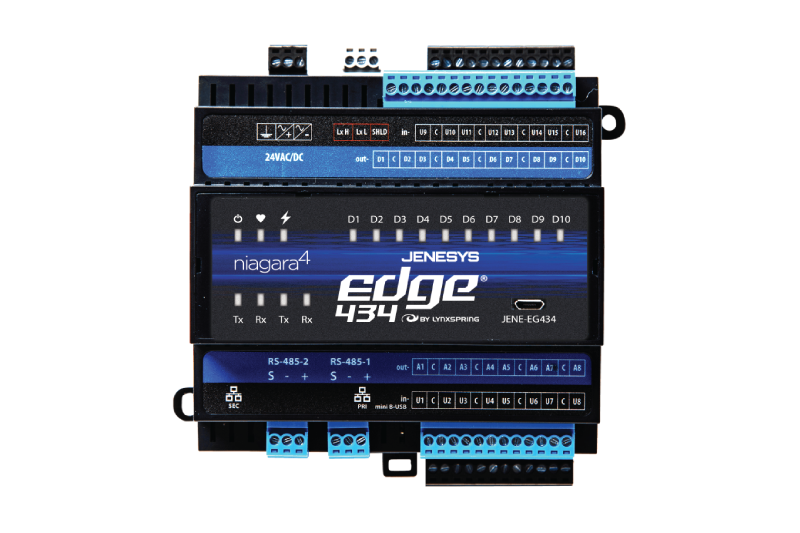

JENEsys Edge^® 434

Niagara 4 Programmable Logic Controller

JENEsys Edge products are a new generation of IP controllers combining the Niagara Framework^® with Lynxspring's Onyxx^® platform.

The JENEsys Edge 434 is a Niagara 4, IP programmable controller with 34 IO built in and expandable IO available, delivering edge connectivity, interoperability, data access and analytics for today's buildings, energy management, machine-to-machine applications and IoT environments.

Deliver the Reliability of Niagara 4 to the Edge

Taking Niagara 4 to the edge with real-time control, the JENEsys Edge 434 utilizes the same Niagara ProBuilder/Workbench software, programming tools and Fox Protocol. JENEsys Edge products are available to any certified Niagara integrator or contractor.

Connect & Access Data

Purpose-built, Lynxspring's JENEsys Edge 434 delivers connectivity, data access, management and control for multi-sized buildings including small facilities, plants or equipment control, machine-to-machine and IoT applications that require smart edge technology. JENEsys Edge 434 licensing is perfectly suited to take Niagara into smaller and price-sensitive applications.

Reduce Engineering Time & Installation Costs

The JENEsys Edge 434 combines Niagara 4 and Onyxx, a proven IoT edge hardware platform, enabling facility managers, operators, system integrators and contractors to use a known user interface to achieve operational efficiencies between multiple systems and/or devices and facility management.

RMF Accreditation

The entire JENEsys Edge portfolio of controllers are each eligible for accreditation under the federal Risk Management Framework (RMF). RMF is a process used by the U.S. federal government that combines their information security, risk management, and privacy management into a unified set of guidelines they follow for cybersecurity related to operating and managing buildings, facilities, and control systems. By following the RMF, additional measures are strategically implemented to help enhance the cybersecurity of their OT and IT systems against outside or malicious threats and to maintain data privacy.

Features

• Fully Programmable Niagara 4 Controller
• 10 Digital Output (DO) relays, 16 Universal Inputs (UI) and 8 Analog Ouputs (AO)
• N4 embedded software
• Supports N4 License APC-3 (68 points and 3 devices) and APC-2 (14 points and 2 devices)
• Supports Spanning Tree Protocol

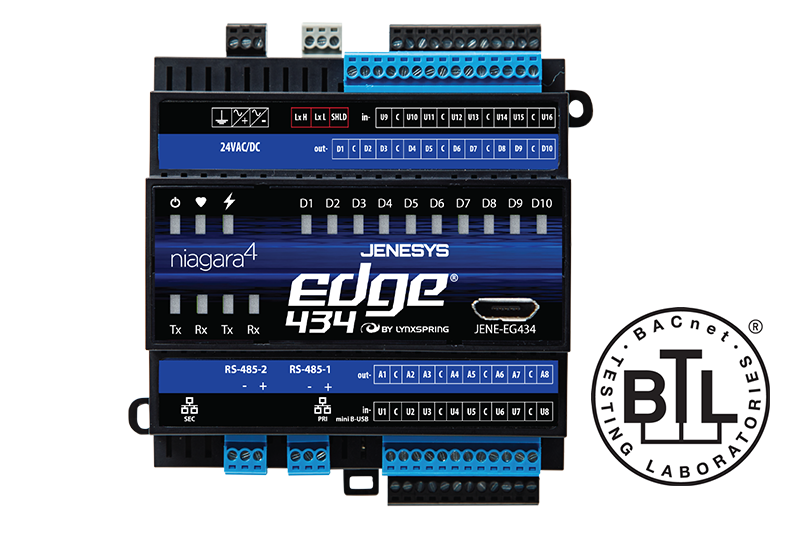

• Supports FOX, BACnet IP and MSTP, Modbus TCP/RTU (client only), WEBUI and others.
• Ready to include compatibility with the edge configuration tool, auto IP addressing, provisioning program and continuous commissioning

JENEsys Edge:  One Platform. Many Possibilities.
