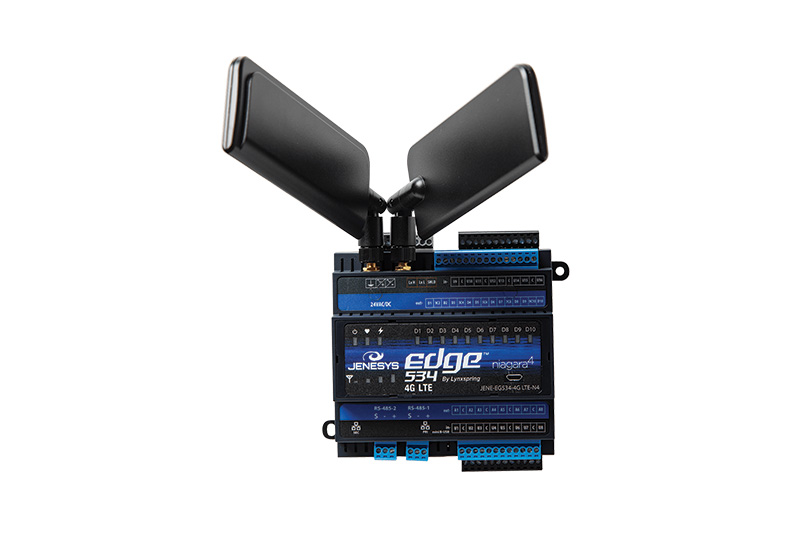

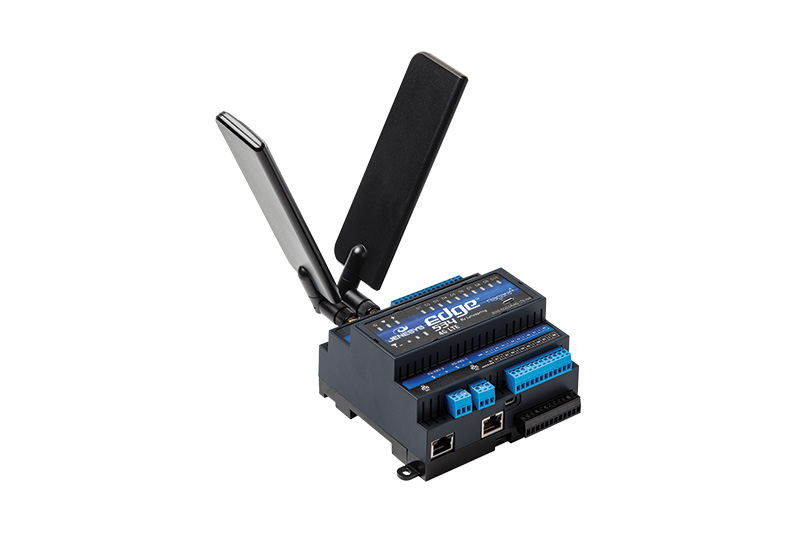

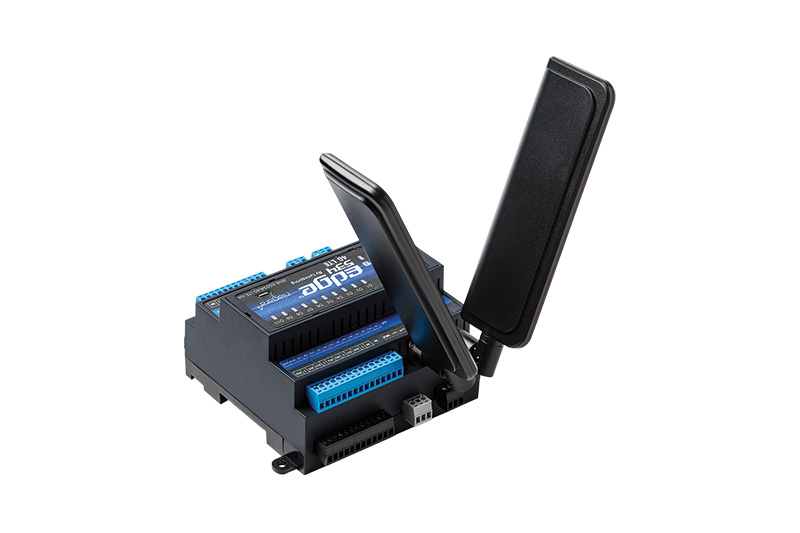

JENEsys Edge® 534 4G LTE

Niagara 4 Programmable Logic Controller

The JENEsys Edge® 534 4G LTE is a fully programmable Niagara 4 IP controller with 34 IOs, built-in and expandable up to 306 IOs, with 4G LTE cellular connectivity and capabilities. It presents an efficient and simple way to implement reliable, on-demand cellular connectivity to enable remote access, control, and management.

Deliver Reliability to the Edge

Lynxspring’s Edge Enabled® JENEsys Edge 534–4G LTE multi-purpose controller combines the full features and functionality of Niagara 4 utilizing Niagara ProBuilder/Niagara Workbench software, Niagara 4 programming tools and Fox Protocol. This device supports secure, bi-directional communication, remote access, and the exchange of data among today's intelligent buildings, equipment, edge devices and Cloud services. It enables users to remotely access, monitor and control systems and equipment through Niagara 4 and have access to building and equipment data through a dedicated secure VPN service from Verizon, or a participating Verizon service of your choice.

Lynxspring’s Easy Data Service Plan

The JENEsys Edge 534–4G LTE is packaged with an available, purpose-built Verizon for data traffic only, Lynxspring’s Easy Data Service Plan and Private Wireless Network. With the reliability, coverage, security, and simplicity of this cellular data plan, the JENEsys Edge 534–4G LTE has been designed for easy set-up, installation, commissioning and includes a cellular modem interface allowing instant communication upon startup. Refer to the Lynxspring’s Terms and Conditions of Product Sale for additional information.

Benefits

• Linux OS
• Open NiCS
• Easy to configure and deploy.
• Widespread service coverage
• Cost effective data service plan.
• Secured cellular connection via VPN.
• High-speed 4G LTE connection; fast data exchange speeds
• Simplified configuration and deployment with a user interface
• On-board NimbeLink’s Skywire® LTE CAT 1 embedded cellular modem
• Built with fully programmable and licensed Niagara 4 software–Full Stack
• Aligned with leading, cellular modem manufacturer/cellular service provider.
• Standard Niagara 4 drivers – Niagara 4 network (Fox), BACnet, Modbus, Web & oBIX
• Using the Fox protocol, easily connects to a Niagara Supervisor, Enterprise, and Cloud
• Same Niagara programming tools, Workbench and Fox Protocol (no new training or certification required)
• 34-IO (Inputs and Outputs) on-board and expandable IO through the accompanying XM extension modules

Connect & Access Data – Anytime, Anywhere

This BMS controller features NimbeLink’s Skywire® LTE CAT 1 embedded cellular modem. This modem is specifically designed to meet the challenge of connecting devices to cellular networks. It is designed for deployment on the Verizon LTE network and is certified, enabling easy integration with no further carrier testing requirements. This controller is only compatible with Verizon LTE networks within the United States only. The cellular modem works with Lynxspring’s Easy Data Plan and Private Wireless Network powered by Verizon. It can work with other Verizon networks but is subject to Verizon's terms and limitations. The ESN ID and EMEI information is provided to you by Lynxspring for direct activation if desired.

Lynxspring's Private Wireless Network

Lynxspring’s Private Wireless Network is a secure cellular connection to systems, devices and equipment using industry-standard Ethernet communications over a segregated and private network. The network supports 4G LTE. The private wireless network offers you a simple and trusted data transfer solution offering you coverage, speed, and reliability. Different from a public network-based, open, and static IP modems–our Private Wireless Network is purpose-built for data traffic–avoiding the inherent risks of the public internet, malware, and viruses.

Ensure Data Security

The cellular connection secured as the user interface is password protected. The device sits behind a virtual private network (VPN) to ensure data security. There is not a limit to the number of devices that can be connected using Lynxspring’s VPN service, however, performance is dependent on downstream device bandwidth usage.

Configure Remotely

The JENEsys Edge 534–4G LTE can be configured remotely by accessing the user interface via the local IP address and the cellular IP address. The controller and modem will communicate with most types of equipment since they are designed to forward IP-based traffic to any device that provides reciprocal IP interfaces. You can ensure a strong signal by performing a test temporarily with a Verizon 4G LTE device including the JENEsys Edge 534–4G LTE prior to installation.

RMF Accreditation

The entire JENEsys Edge portfolio of controllers are each eligible for accreditation under the federal Risk Management Framework (RMF). RMF is a process used by the U.S. federal government that combines their information security, risk management, and privacy management into a unified set of guidelines they follow for cybersecurity related to operating and managing buildings, facilities, and control systems. By following the RMF, additional measures are strategically implemented to help enhance the cybersecurity of their OT and IT systems against outside or malicious threats and to maintain data privacy.

Cellular Modem Features

• RoHS compliant
• Low power requirements
• FCC, Verizon ODI approved and certified
• No additional carrier certification required.
• Supports bi-directional communication remote access.
• End-device certified, which enables easy integration with no further carrier testing requirements.
• Network Stack Support (Integrated TCP/IP, UDP/IP, HTTP/HTTPS, FTP, SMTP, IPv4/IPv6, NITZ, PING, PPP Stacks, SMS over IMS)
• Power Supply Voltage: 3 V – 5.5 V (3.8 V nominal); I/O voltage 1.65 V – 5.5 V; current consumption average 135 mA, peak 700 mA, idle 48 mA, sleep 8.6 mA.
• 18-Month Warranty * (see Lynxspring’s Terms and Conditions of Product Sale for specifics)

JENEsys Edge^®:  One Platform. Many Possibilities.
