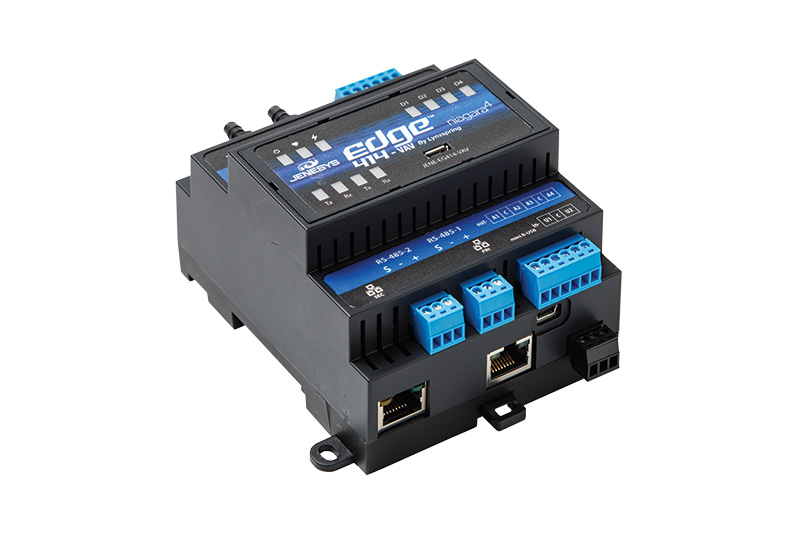

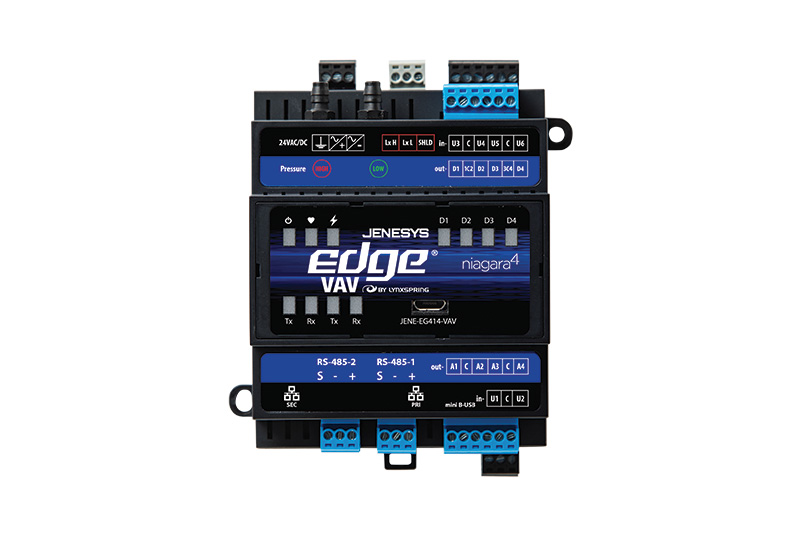

JENEsys Edge^® VAV

Niagara 4 IP Controller

The JENEsys Edge^® VAV controller is the industry’s first IP-based, variable air volume controller developed and built utilizing the Niagara Framework^®. The device, when combined with other JENEsys Edge devices, further leverages, and interconnects with Lynxspring’s horizontal, Niagara IP architecture and topology. Built on Lynxspring’s extensible Onyxx^® IP hardware platform, Helixx^® operating system and Niagara 4 with a 50 point 3-device license, the JENEsys Edge VAV enables users to utilize Niagara ProBuilder/Workbench software, Niagara programming tools, and the Fox Protocol for easy setup, programming, commissioning, and control. The JENEsys Edge VAV controller has been strategically designed to provide a dynamic solution that reduces deployment time, lowers installation costs, is simple to manage, and is easy to update using Onyxx tools and Niagara. The feature set includes a robust set of ready-to-use sequences based on the latest ASHRAE Guideline 36 (G36), enhanced high-definition graphics, and Spanning Tree Protocol (STP) communication. The JENEsys Edge VAV controller comes fully loaded with the required tools for installers, technicians, and service maintenance personnel including balancing, continuous commissioning, single-point configuration, addressing, and high-definition graphical user interfaces.

Benefits

The JENEsys Edge VAV controller has been strategically designed to provide a dynamic solution that reduces deployment time, lowers installation costs, is simple to manage, and is easy to update using Onyxx tools and Niagara, the most ubiquitous building operating framework on the market today:

• Extended Lifecycle
• Flattens the BAS/controls architecture.
• Lower install and support cost
• Lower maintenance requirements
• Easy to connect to and upgrade to existing systems.
• I/O Points on Onyxx Network
• Ideal for new and retrofit projects.
• Maximizes your investment in Niagara.
• Superior flexibility, expandability, and comprehensive capabilities

Note:  Global Capacity points/devices are limited by license: (50) points and (3) devices. The Onyxx driver is limited by points only.

RMF Accreditation

The entire JENEsys Edge portfolio of controllers are each eligible for accreditation under the federal Risk Management Framework (RMF). RMF is a process used by the U.S. federal government that combines their information security, risk management, and privacy management into a unified set of guidelines they follow for cybersecurity related to operating and managing buildings, facilities, and control systems. By following the RMF, additional measures are strategically implemented to help enhance the cybersecurity of their OT and IT systems against outside or malicious threats and to maintain data privacy.

Ideal for Mid-Sized Buildings/Facilities Equipment Control

The unit is ideal for today’s small, mid-sized, and large facilities, multi-site environments, plant, and equipment control of variable air volume applications. This powerful unit meets today’s requirements to connect, manage and control closer to where the data is whether it be equipment, a single facility, or a multi-site environment. The versatility, functionality, and broad footprint of the JENEsys Edge VAV controller using the industry’s most widely deployed platform makes this a powerful, cost-effective, and economical solution. This Niagara controller can easily be integrated into other Niagara 4 solutions. It is perfect for both retrofit and new construction projects, small to mid-sized equipment, and applications in commercial, retail, hotels, schools, churches, and health care clinics.

Business Use Cases the JENEsys Edge VAV Resolves

The JENEsys Edge VAV device is best used in situations with an air distribution system using VAV Boxes, where it is important to make it consistent across multiple air supply services. It offers higher levels of data processing, increased storage capabilities, and adds a level of command and control. The JENEsys Edge VAV licensing is well-suited to take Niagara 4 into smaller or mid-sized and price sensitive VAV applications.

JENEsys Edge VAV vs. the JENEsys Edge 534

The JENEsys Edge VAV controller has the same general capabilities, same processor, and memory as the JENEsys Edge 534 controller, but with fewer built-in IOs (15 vs. 34) and a smaller form factor. The JENEsys Edge 534 offers multiple license capacities while the JENEsys Edge VAV is limited to 50 points and 3 devices and cannot be upgraded.

JENEsys Edge VAV vs. JENEsys Edge 414

The JENEsys Edge VAV controller has the same general capabilities, same processor, and memory as the JENEsys Edge 414 controller, including the same form factor. In addition to the built-in IOs (14), the JENEsys Edge VAV controller also has pickup tube connections for reading VAV duct velocity pressure.

VAV Controller Applications Include (but are not limited to):

• VAV Terminal Unit – Cooling Only
• VAV Terminal Unit with Reheat
• Variable & Constant Volume Fan:
• Parallel Fan-Powered Terminal Unit
• Series Fan-Powered Terminal Unit
• Dual-Duct VAV Terminal Unit:
• Snap-Acting Control
• Mixing Control with Inlet Airflow Sensors
• Mixing Control with Discharge Airflow Sensor
• Cold-Duct Minimum Control
• Ventilation Only
• California Title 24 compliance
• Options: CO2, Occupancy, Programmable Outputs, et al.

Note: These applications will only work with Lynxspring controllers

JENEsys Edge® VAV Controller Specifications:

• Powered by the Niagara Framework® N4 licensed for 50 points & 3 devices with perpetual maintenance included supports 10:1 supervisor license scheme.
• Uses standard Niagara 4 drivers.
• Primarily uses IP networking for Niagara Fox communications.
• Up to 25 controllers are supported on a single Spanning Tree IP Protocol Network
• Capable of stand-alone operation
• Web Browser HMI included.
• Field configurable using a Web Browser or ProBuilder/Workbench
• Includes pressure independent and pressure dependent applications.
• All applications are compliant with ASHRAE® G36 Standardized Sequences
• 14 total Inputs/Outputs on-board:
• 4 Digital Outputs
• 4 Analog Outputs o 6 Universal Inputs
• 1 Differential Pressure Input
• 4G eMMC Flash Memory
• 1GHz AM335x ARM Cortex A8 Processor
• 35 mm DIN rail or flat panel mounting
• Available ancillary parts from Lynxspring include wall sensors, actuators, relays, sensors, etc.
• 18-Month Warranty * (see Lynxspring’s Terms and Conditions for specifics)
• Lynxspring Requires Product Training for the JENEsys Edge VAV Controller

JENEsys Edge^®:  One Platform. Many Possibilities.
