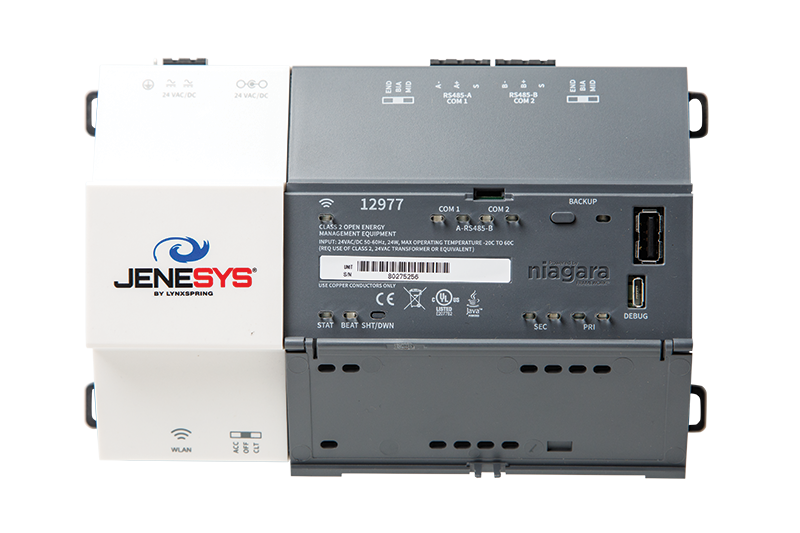

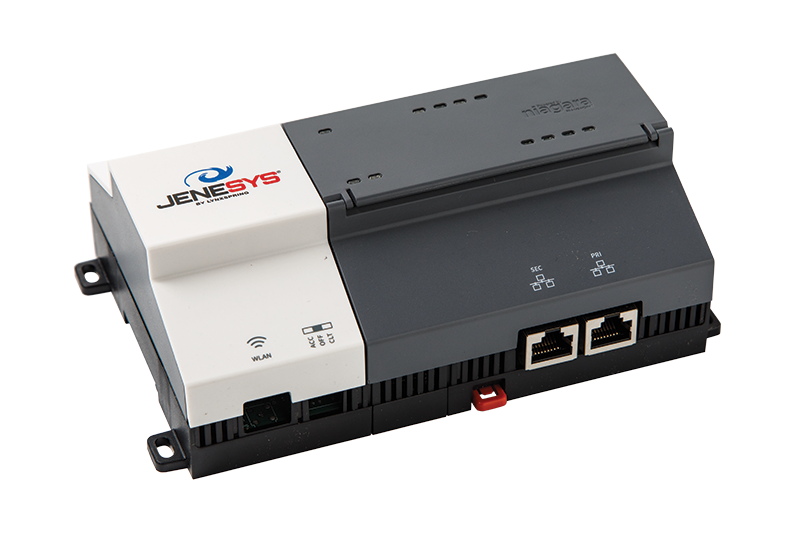

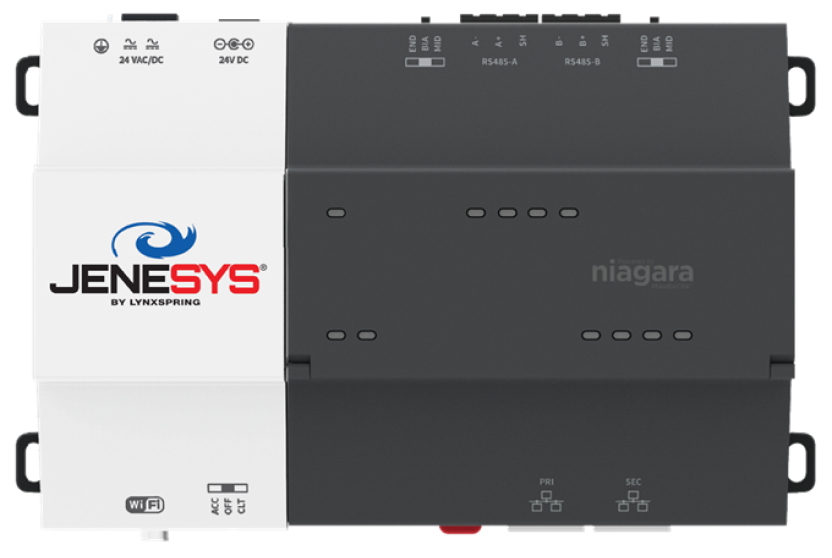

JENEsys^® PC-8000

Niagara Controller

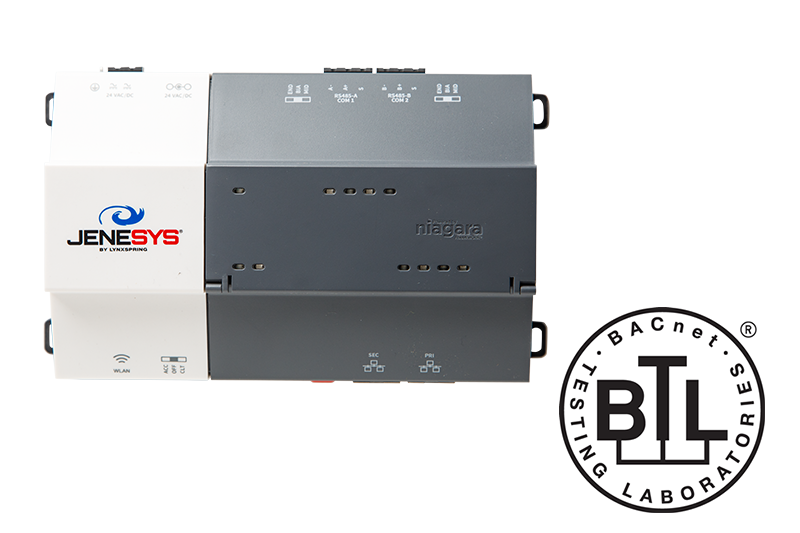

The JENEsys PC-8000 is a compact, embedded IP controller and server platform for connecting multiple and diverse devices and sub-systems. With Internet connectivity and web-serving capability, this controller provides integrated control, supervision, data logging, alarm, scheduling, and network management. It streams data and rich graphical displays to a standard Internet web browser via an Ethernet or remotely via wireless LAN. The JENEsys PC-8000 is a traditional Niagara controller and is the gold standard for integration of over 100 legacy communications protocols. Used as an area supervisor or front end, the JENEsys PC-8000 is the most ubiquitous controller on the market today. The JENE PC-8000 operates with Niagara 4, the latest version of the Niagara Framework^®, for optimum performance. It is also BTL Certified.

Applications

A JENE PC-8000 is ideal for any size facility. In larger facilities, multi-building applications, and large-scale control system integrations, Niagara 4 Supervisors can be used with JENEsys PC-8000 controllers to aggregate information, including real-time data, history, and alarms to create a single, unified application.

Features

• Platform: TI AM3352: 1000MHz ARM^® Cortex™-A8
• Standard: Two RJ-45 Ethernet Ports, two RS-485 Ports
• Interoperable: Supports BACnet^®, LonWorks^®, FOX, Modbus^®, oBIX, SNMP, and legacy protocols.
• Versatile: Fully customizable with an array of software drivers and custom modules.
• Reliable: 1GB DDR3 SDRAM and removable micro-SD card with 4GB flash total storage/2GB user storage.
• Fast: Onboard 1GB Ethernet communication provides rapid data transmission.
• Expandable: Add up to 16 optional 16 point remote I/O modules.
• Implementation: Stand-alone application control, energy management, and multi-protocol integration.
