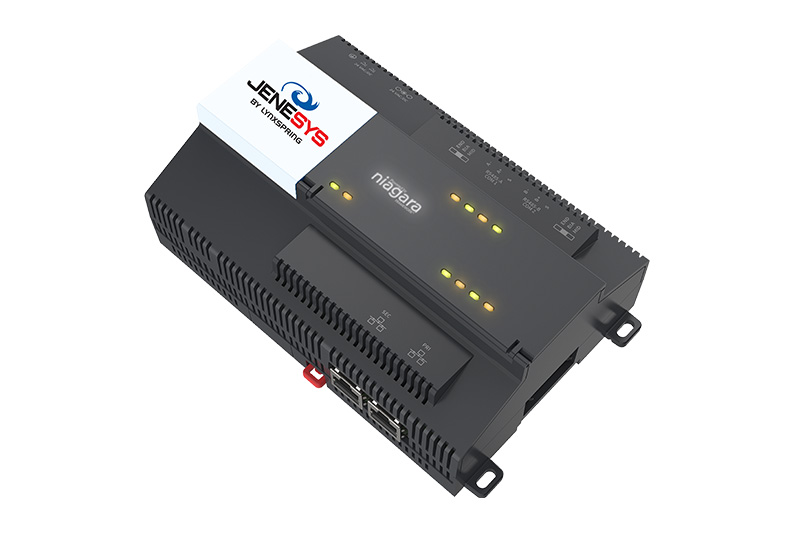

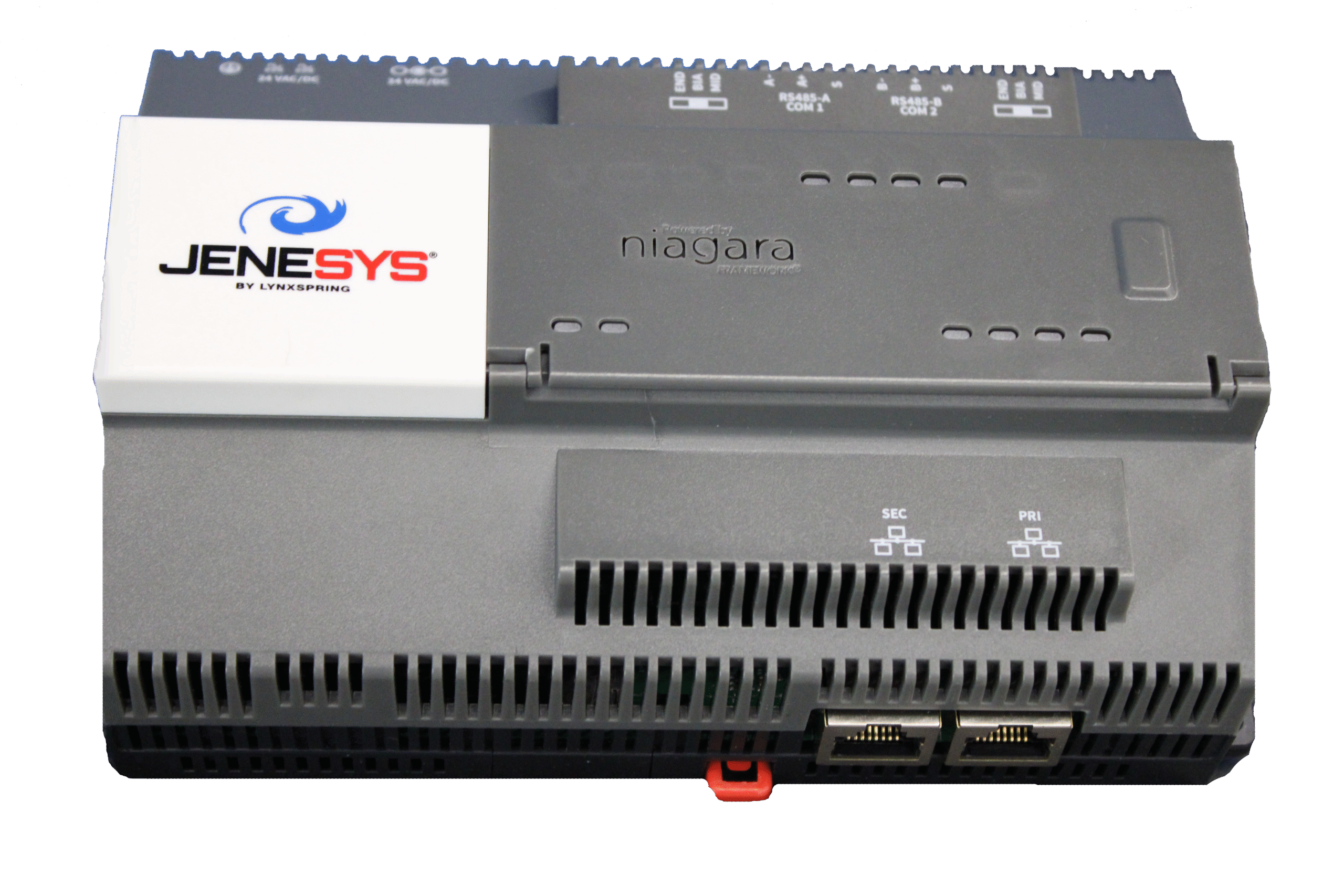

JENEsys® PC-9000

Niagara Controller

The JENEsys PC-9000 is the latest and greatest Niagara embedded IP controller and server platform that helps you connect multiple building automation devices and HVAC sub-systems. Utilizing Internet connectivity and web-serving capabilities, this building management system controller provides you with the integrated control, supervision, data logging, alarm, scheduling, and network management you need. Streaming your building's data and graphical displays via a standard Internet web browser, you can choose between an Ethernet connection or remotely access your building's data via a wireless LAN connection.

De Facto Industry Standard

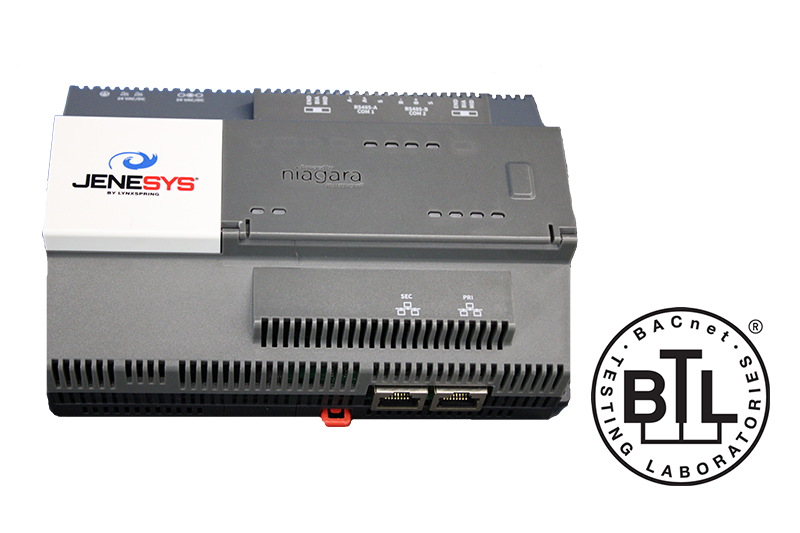

The JENEsys PC-9000 is a traditional Niagara controller and is the de facto industry standard for integration of over 100 legacy communications protocols. Used as an area supervisor or front end, the JENEsys PC-9000 is the most universal controller in the building integration market today. It has stand-alone application control, energy management, and multi-protocol integration. The JENE PC-9000 operates with Niagara 4, the latest version of the Niagara Framework®, for optimal performance. It is also BTL Certified.

Licensing

The licensing model for the JENE PC-9000 controller is simplified and features standard drivers, along with optional IO and field bus expansion modules for the flexibility and expandability you need on a building job site. Niagara 4 Supervisors can be sued with JENE controllers to aggregate information including alarms, and historical and real-time data, creating a single and unified application at your fingertips.

Applications

A JENE PC-9000 is ideal for any size facility. In larger facilities, multi-building applications, and large-scale control system integrations, Niagara 4 Supervisors can be used with JENEsys PC-9000 controllers to aggregate information, including real-time data, history, and alarms to create a single, unified application.

Features

  • NXP iMX8M+ Quad Core CPU
  • 2GB LPDDR4 RAM
  • Removable 8GB micro-SD card
  • USB type C connector (Debug Port)
  • (2) isolated RS-485 with selectable bias and termination
  • (2) 10/100/1000MB Ethernet ports
  • Secure Boot
  • *Supply requirements: 24VAC rated at 24VA minimum, or 24VDC rated at 1A (24W) minimum
  • Runs Niagara 4: 4.13 and later
  • Real-Time Clock
  • Batteryless
  • Maximum IO (Modules Supported): IO-R-16 (16) * IO-R-34 (8) * *See JENE IO R data sheet for configuration details
  • Wi-Fi (Client or WAP)
  • Wi-Fi 5 (802.11ac)
  • 1x1 802.11 a/b/g/n/ac
  • Configurable Radio (Off, WAP, or Client)
  • WPAPSK/WPA2PSK supported
  • Only available for wireless model

Agency Certifications

  • UL 916
  • CE EN 61326-1
  • RCM
  • FCC Part 15 Subpart B, Class B
  • FCC Part 15 Subpart C
  • C-UL listed to Canadian Standards Association (CSA) C22.2 No. 205-M1983 "Signal Equipment"
  • 1999/5/EC R & TTE Directive
  • CCC
  • SRRC
  • RSS
  • RoHS
