Onyxx® LX TZ200

User Room Sensor

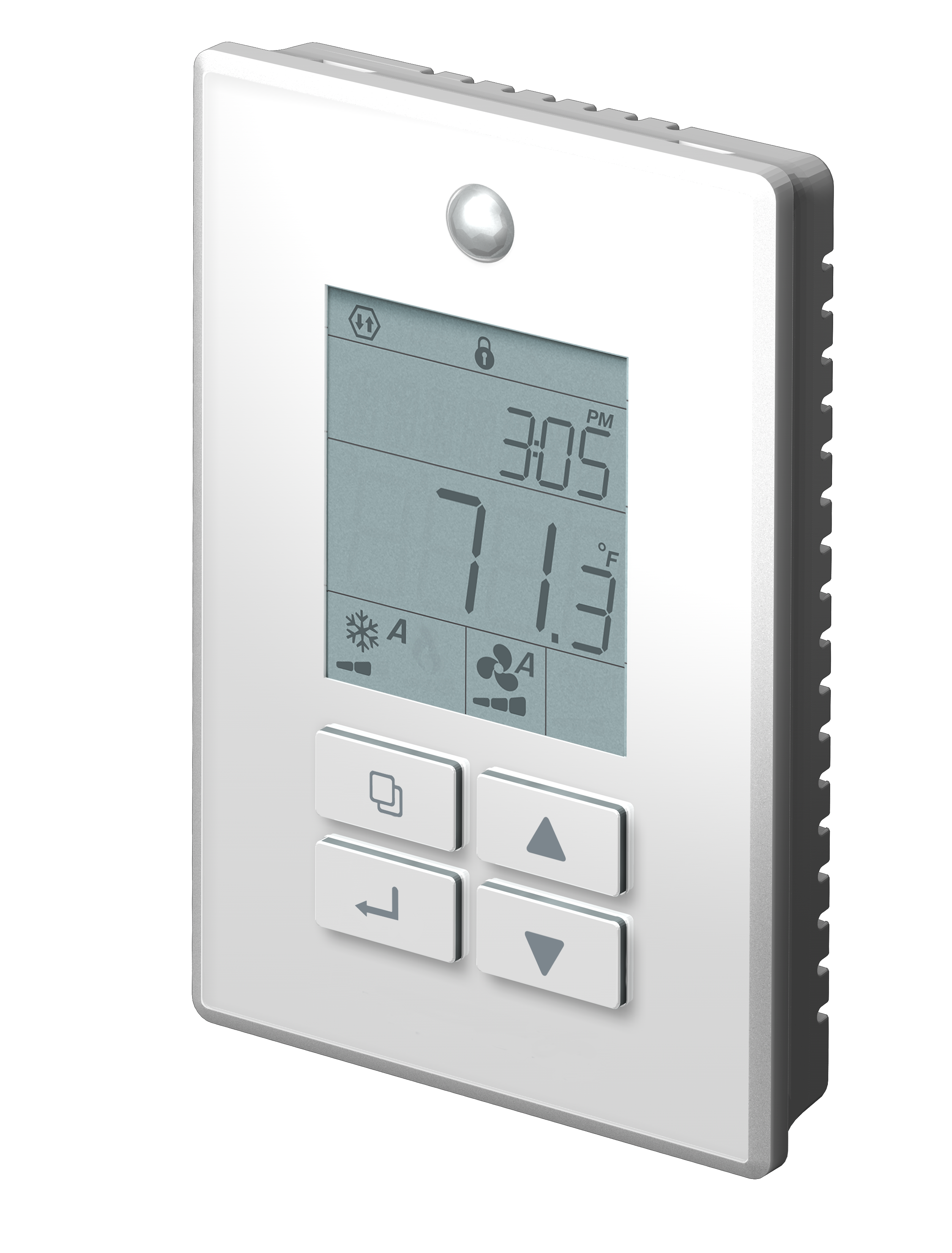

The TZ200-LX is a sleek and modern digital IAQ sensor that allows occupants to interact with the HVAC control system. This room sensor is available with motion, humidity, and CO2 sensing options.

Description

  • Room user digital IAQ sensor complementary to the controllers from the Onyxx LX product line
  • Displays user data and information such as time, temperature, and requests for heating and cooling through a backlit LCD display.
  • Communicates to the controllers using a proprietary RS-485 protocol. Up to 3 TZ100-LX or TZ200-LX room sensor per controller can be wired when used with the Onyxx LX controllers.
  • Has a local BACnet MS/TP USB port for network access
  • Requires an Onyxx LX USB to RS-485 adapter to configure devices on the trunk with Onyxx LX UI
  • To order use part numbers as per table below:
Model Number Built-In Humidity Sensor Built-In PIR Motion Sensor Built-In CO2 NDIR Sensor
TZ200-LX
TZ200H-LX ✓
TZ200MH-LX ✓ ✓
TZ200HC-LX ✓ ✓
TZ200MHC-LX ✓ ✓ ✓

Application

This sensor is designed to facilitate simple user interactions typically used in the HVAC industry for terminal equipment control. It allows powerful yet flexible solutions that can be tailored and sized according to any project needs.
BROCHURES
IMAGE GALLERY
white download icon in blue circle

Onyxx TZ200-LX Data Sheet
×
