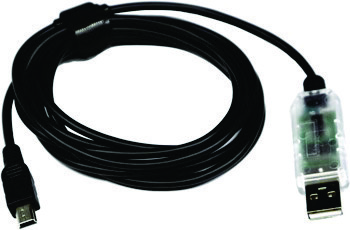

Onyxx® LX USB MS/TP

USB to BACnet MSTP Serial Converter Cable

Description

  • For viewing data on the MSTP network from Onyxx LX controllers.
  • Quick connection to Onyxx LX controllers through a USB to USB-mini type connector.
  • The cable is powered by the USB 2.0 port of the computer.
  • The integrated electronics also include the RS485 transceiver as well as Tx and Rx LEDs that give a visual indication of the traffic on the MSTP network.
  • The main chip is FTDI FT232RL. Built-in 15KV ESD protection and TVS over voltage protection.
  • To order use part number: USB-MSTP-LX

Application

Used to connect to Onyxx LX controllers for configuration, troubleshooting, and diagnostics.

Technical Specifications

  • The USB to BACnet MS/TP serial RS-485 converter cable provides a USB serial interface to an MS/TP network through a USB-to-USB-mini connector.
  • Data transfer rates up to 115200 baud.
  • USB 2.0 Full Speed compatible.
  • Operating temperature range:  -40° C to +85° C.
