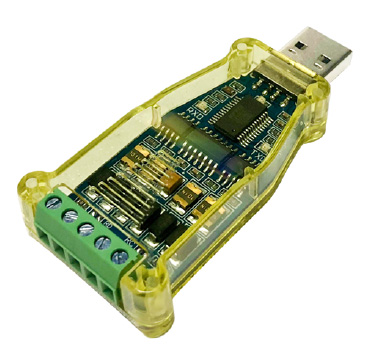

Onyxx^® USB-COM

USB to MS/TP Adapter

Description

For viewing data on the MSTP network
Quick connection to Onyxx LX controllers through a USB type connector
The cable is powered by the USB 2.0 port of the computer.
The integrated electronics also include the RS485 transceiver as well as Tx and Rx LEDs that give a visual indication of the traffic on the MSTP network.
The main chip is FTDI FT232RL. Built-in 15KV ESD protection and TVS over voltage protection
To order, use the part number: USB-COM-LX

Application

Used to connect to Onyxx LX controllers for configuration, troubleshooting, and diagnostics.

Technical Specifications

The USB-COM converter provides a USB serial interface to an MSTP network through a USB connector.
Visual indication of Tx and Rx traffic via LEDs
Data transfer rates up to 115200 baud
USB 2.0 Full Speed compatible
Operating temperature range: -40°C to +85°C
