Onyxx^® Wall Module

Application

The Onyxx Wall Module (OWM) is a configurable sensor for smarter buildings. As visually appealing as it is advanced in its application, the OWM is designed for ease of installation and dependability for multiple uses. Engineered to accompany the JENEsys Edge® family of intelligent controllers, it accurately senses temperature and humidity. When communicating with a connected controller, it displays the sensed values, mode, time, controller status, and more. Change setpoints, control modes, perform overrides and signal the controller directly from the Onyxx Wall Module. Use it to directly provide controlled variables and feedback from VAVs, rooftop units (RTUs), heat pumps, air handlers (AHUs), terminal units, other equipment, and their accessories.

Interface & Physical Properties

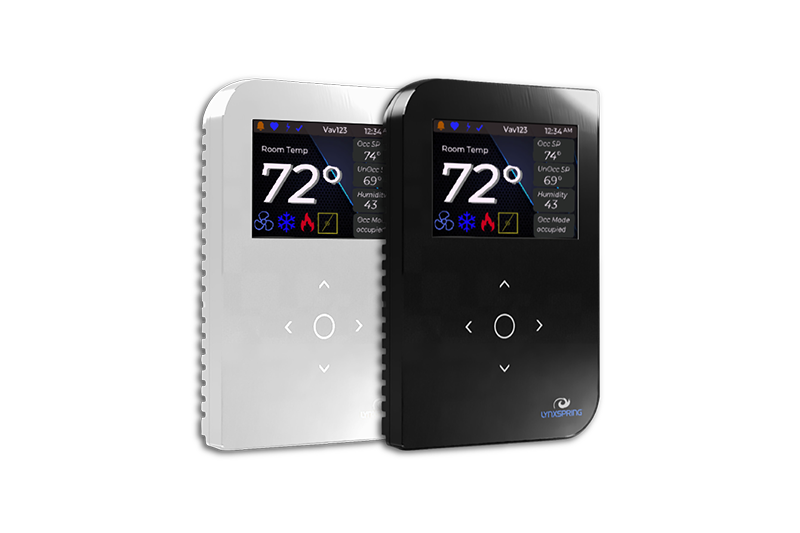

The face of the enclosure is entirely glass with an embedded full-touch interface. The OWM features programmable touch operations such as in/out/up/down buttons, swipes, and exclusive levels of access. The screen is backlit enabled using RGBW LEDs, housed in a durable ABS plastic enclosure and mountable to a standard 4” x 2” electrical single gang box or anchored directly to the wall. An RJ-12 connector is flush with the back of the enclosure to allow for easy connection to a JENEsys Edge controller.

Features

• Change Setpoints from Display
• Display Color Customization
• Made in the USA

The sensor is auto-discovered upon connection and requires no user interaction to auto-address within the JENEsys Edge controller and begin communicating when connecting a single OWM. The JENEsys Edge controller services enable the Onyxx Wall Module menu system to be accessed using the soft-touch interface. Connect up to 4 OWMs to a single Edge device for multi-room command of indoor climate (manual discovery is required when connecting multiple OWMs to a single Edge device).

Ordering Information

Part Number

• ONYXX-WM-T-RH-W
• ONYXX-WM-T-RH-B
• ONYXX-WM-T-RH-W-CSE
• ONYXX-WM-T-RH-B-CSE

Description

• White Onyxx Wall Module Temp/Humidity*
• Black Onyxx Wall Module Temp/Humidity*
• White OWM - Case of 18*
• Black OWM - Case of 18*

* Mounting hardware included
