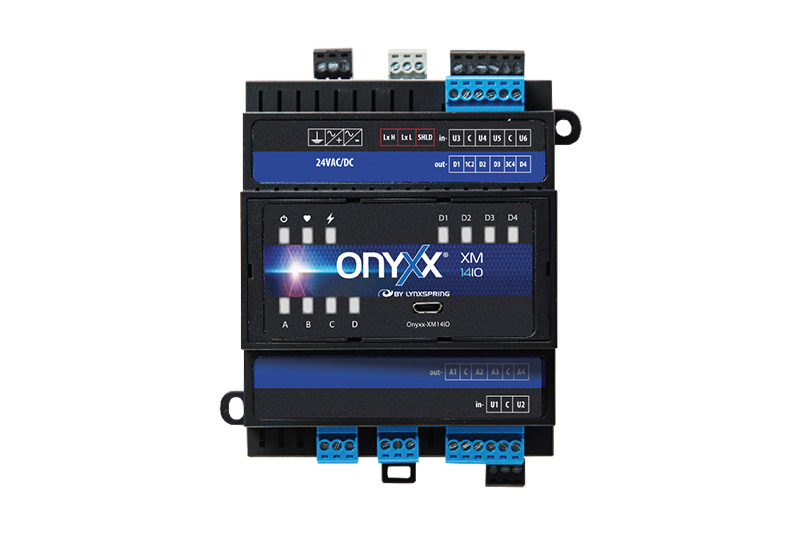

Onyxx^® XM 14IO Extender Module

The Onyxx XM 14IO is part of Lynxspring’s Edge-to-Enterprise portfolio of hardware, software and tools designed for today’s buildings, IoT environments, device-to-enterprise integrations, and machine-to-machine applications. Designed to provide maximum performance at minimum cost, this device is completely extendable and can be configured to add additional IOs to any JENEsys Edge controller to maximize the edge controller's available licensed points.

Use Cases

• Additional IO for JENEsys Edge 534, 514, 434, 414 and VAV controllers.
• The Onyxx Network supports Onyxx XM IO modules.
• Add Onyxx-XM14IO extender modules to JENEsys Edge controllers to maximize the edge controller's available licensed points.

Features

• Extends 14 points of inputs/outputs on any JENEsys Edge 534, 514, 414, 434 or VAV controllers over the Onyxx Serial Network.
• Onyxx Expansion Module - 14-point IO Module connection via LynxBus to Onyxx-514 Hardware
• Onyxx Network Connector and 24VAC Terminal Block.
• Up to 7 XM14IO's may be connected to a JENEsys Edge (Last XM14IO in comm bus must be terminated).
• Extremely compact, modular design allows flexibility/versatility.
• Small unit footprint (3.46" x 4.25" x 2.63")
• Low power usage
• 4 Digital Outputs
• 4 Analog Outputs
• 6 Universal Inputs
• Input mode setting per Universal Input (resistance, voltage, current, binary)
• Micro USB (1)
• Wired 24 Vac/dc.
• 35 mm DIN rail or flat panel mounting
