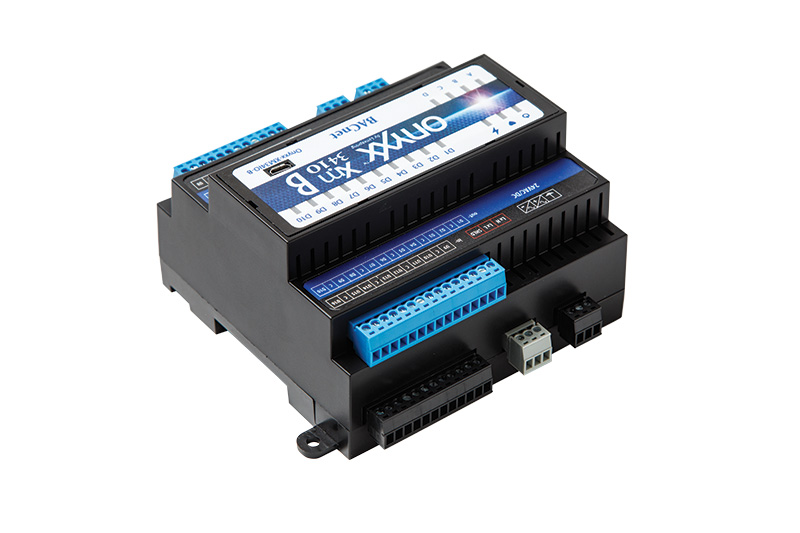

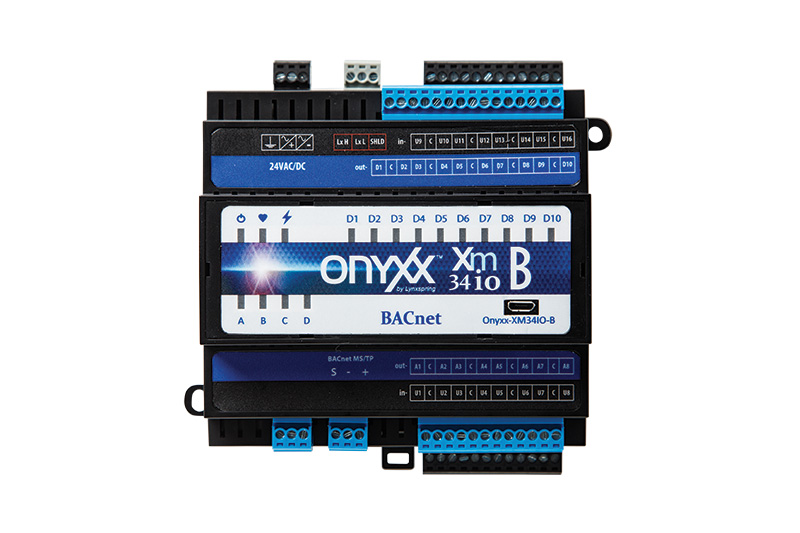

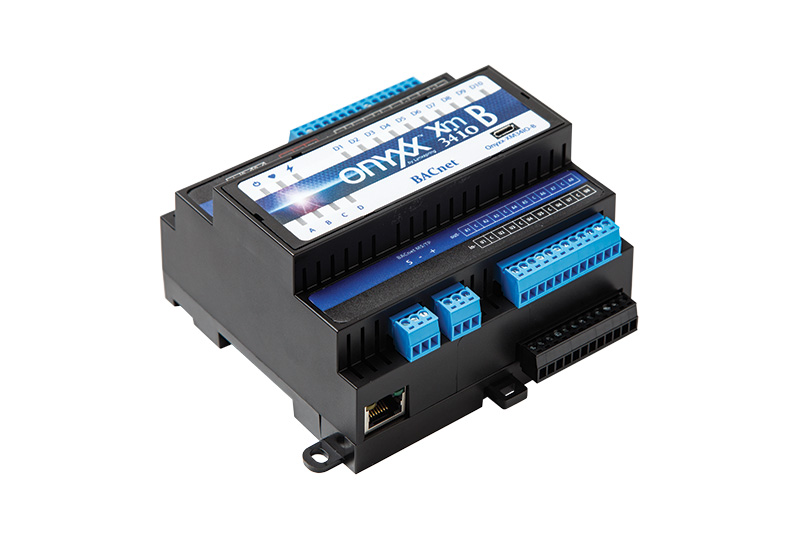

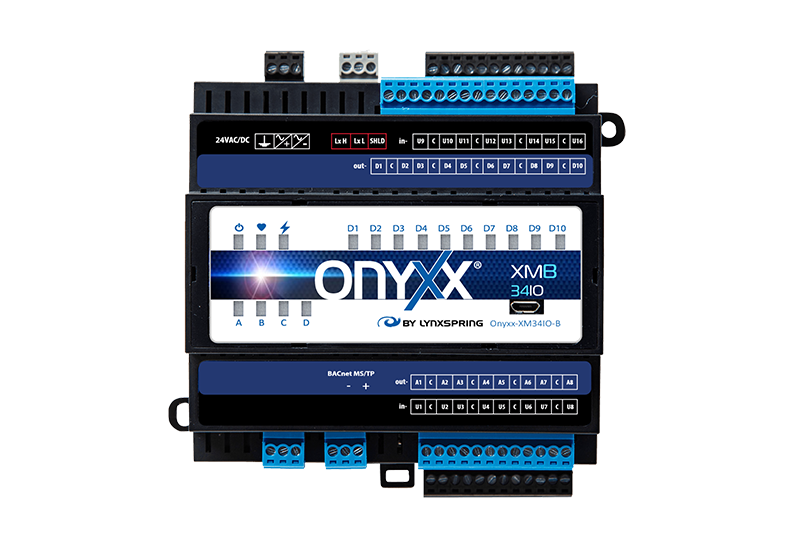

Onyxx® XM 34IO-B (BACnet) Extender Module

The Onyxx® XM 34IO-B (BACnet), part of Lynxspring’s Edge Enabled° portfolio of embedded controllers and extender modules. This device controls functionality and capabilities of Niagara 4 based controllers by extending 34 IO (inputs and outputs). The Onyxx XM 34IO-B is ideal for new commercial and industrial buildings, retrofits, multi-site environments and equipment such as air handling units, roof top units, boilers, fan coil units, heat pumps, etc. It also integrates seamlessly into a Niagara 4 network and supports Lynxspring’s Niagara IP Horizontal Architecture. The Onyxx XM 34IO-B is a slave BACnet MS/TP device with 34 points that can be integrated by the controllers listed above.

Use Cases

Additional IO for a JENEsys Edge 534 or any of the other Lynxspring Edge controllers listed below.


Extends 34 points of Inputs/Outputs to any JENEsys® PC 8000 Niagara 4 controller, JACE® branded Niagara 4 controller, Niagara 4 JENEsys Edge® 534, JENEsys Edge® 534 with Monnit, JENEsys Edge® 534 4G LTE, JENEsys Edge® 514 and JENEsys Edge® 414 controllers over BACnet® MS/TP
    • Extremely Compact, Flexible and Modular Design
    • Small Unit Footprint (4.5” x 4.25” x 2.25”)
    • Low Power
    • Specifications
    • 10 Digital Outputs
    • 8 Analog Outputs
    • 16 Universal Inputs
    • Input mode setting per Universal Input (resistance, voltage, current, binary resistive)
    • Micro USB (1)
    • Wired 24 Vac/dc.
    • 35 mm DIN rail or flat panel mounting
