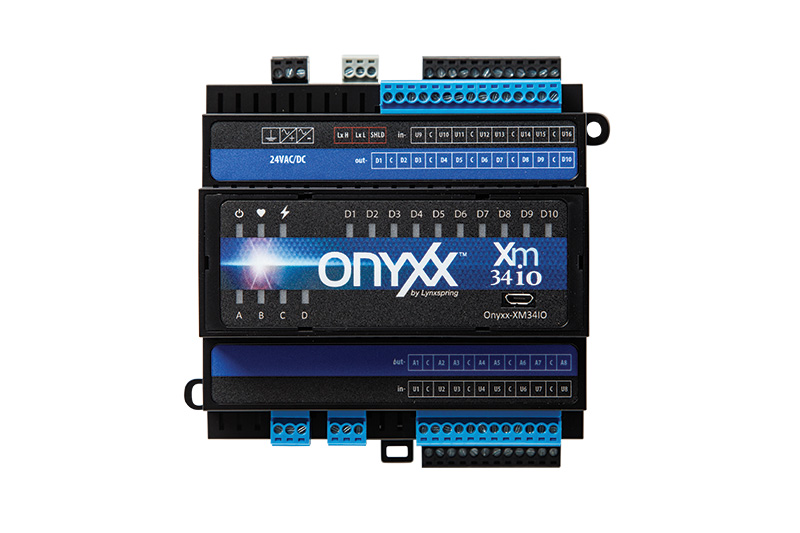

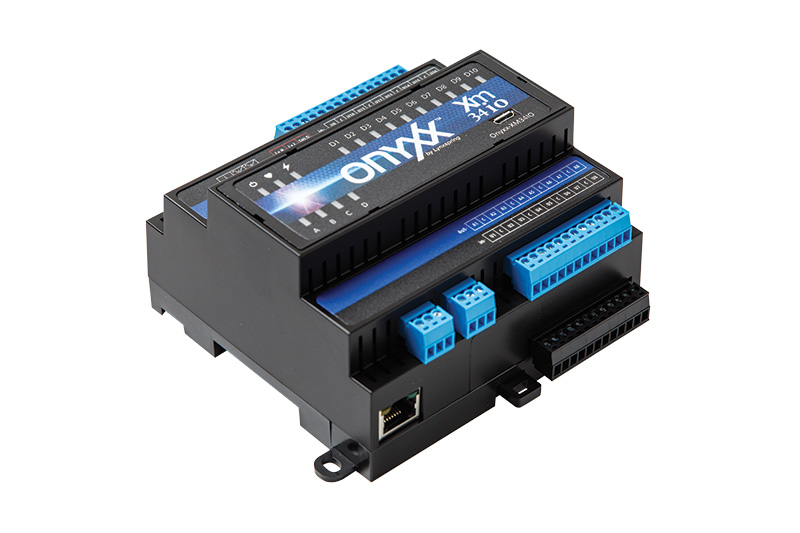

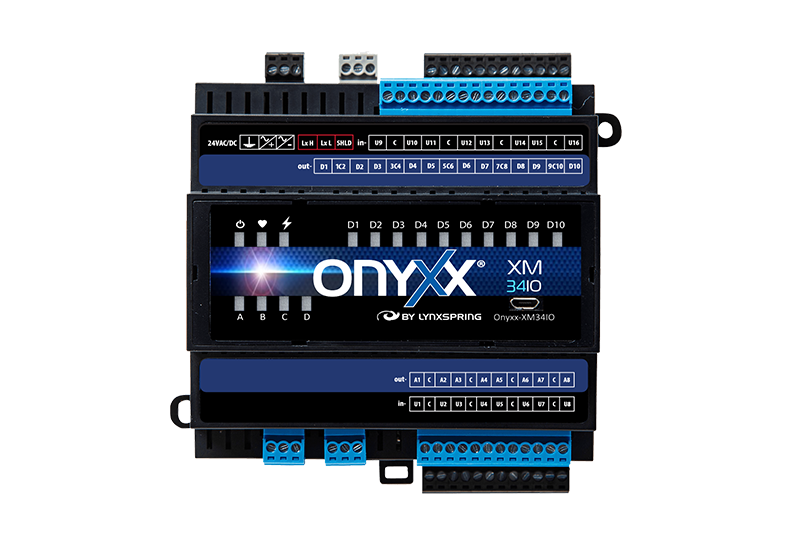

Onyxx® XM 34IO Extender Module

The Onyxx XM 34IO is part of Lynxspring’s Edge-to-Enterprise portfolio of hardware, software and tools designed for today’s buildings, IoT environments, device-to-enterprise integrations, and machine-to-machine applications. Designed to provide maximum performance at minimum cost, the unit is completely extendable and can be configured to add additional IOs to any JENEsys Edge 534 IoT Controller with up to 306 IOs The Onyxx XM 34IO has 34 points and native Onyxx and extends the IO for any device that has an Onyxx network.

Use Cases

Additional IO for a JENEsys Edge 534, the Onyxx Network supports Onyxx XM 34IO modules.


  • Can be used with a JENEsys Edge® 534.
  • Extremely compact, modular design allows flexibility/versatility in various combinations of IO.
  • Extends 34 points to an Onyxx-capable device.
  • 34 Points of Inputs/Outputs
  • Add to a JENEsys Edge 534, up to 8 additional extender modules (at 34 points of IO each) for a maximum of 306 points.
  • Small unit footprint (4.5” x 4.25” x 2.25”)
  • Low power Specifications
  • 10 Digital Outputs
  • 8 Analog Outputs
  • 16 Universal Inputs
  • Input mode setting per Universal Input (resistance, voltage, current, pulse, etc.)
  • Micro USB (1), Onyxx Network
  • Wired 24 Vac/dc.
  • 35 mm DIN rail or flat panel mounting
